InfoTiles is primarily designed to ingest data through connections such as API, IoT and SCADA. You can follow this step to stream your data from SCADA and discover insights. This guide will walk you through the process of adding a SCADA tag in InfoTiles platform.
Go to app.klinkplatform.com
1. Click "Devices"

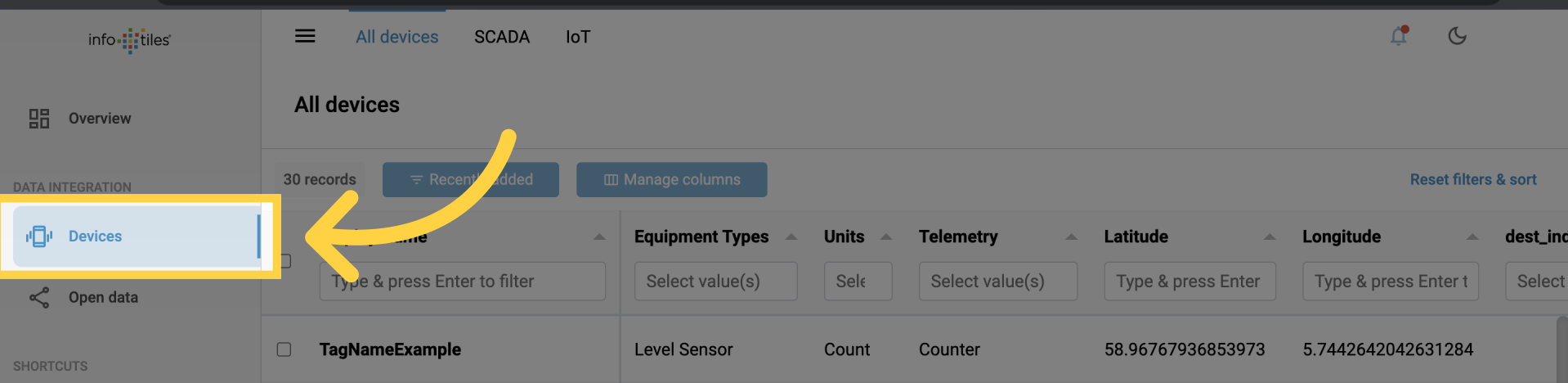

Navigate to "Devices" on the left sidebar

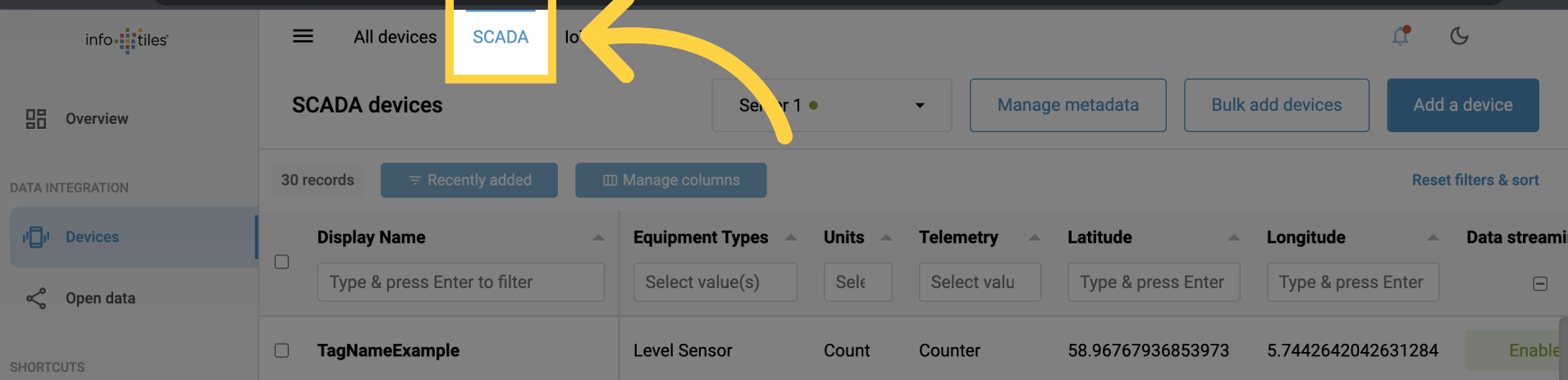

2. Click "SCADA"
Navigate to the SCADA section
3. Click "Add a device"

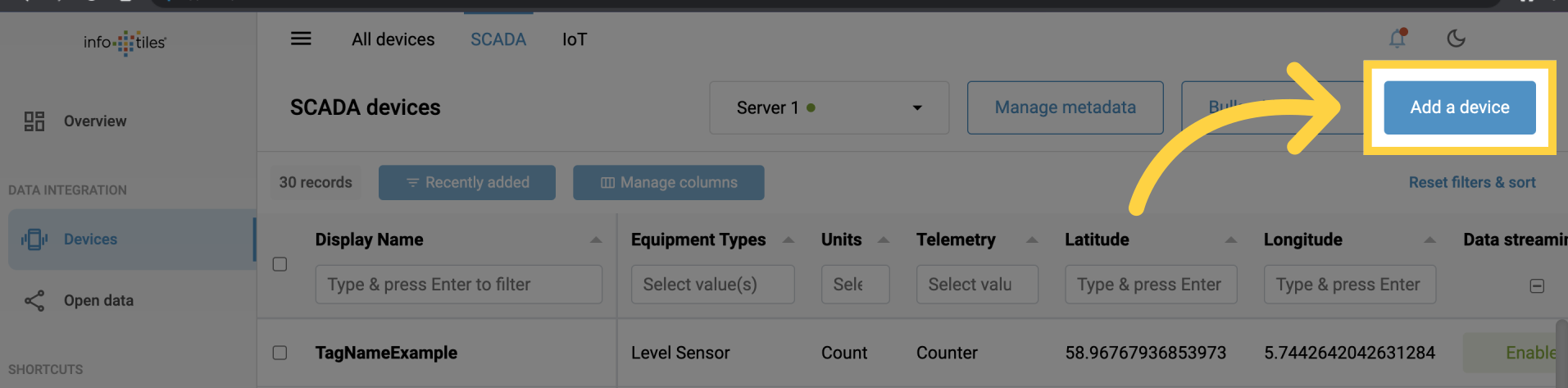

Initiate the process to add a new device.
4. Fill in "Tag ID"

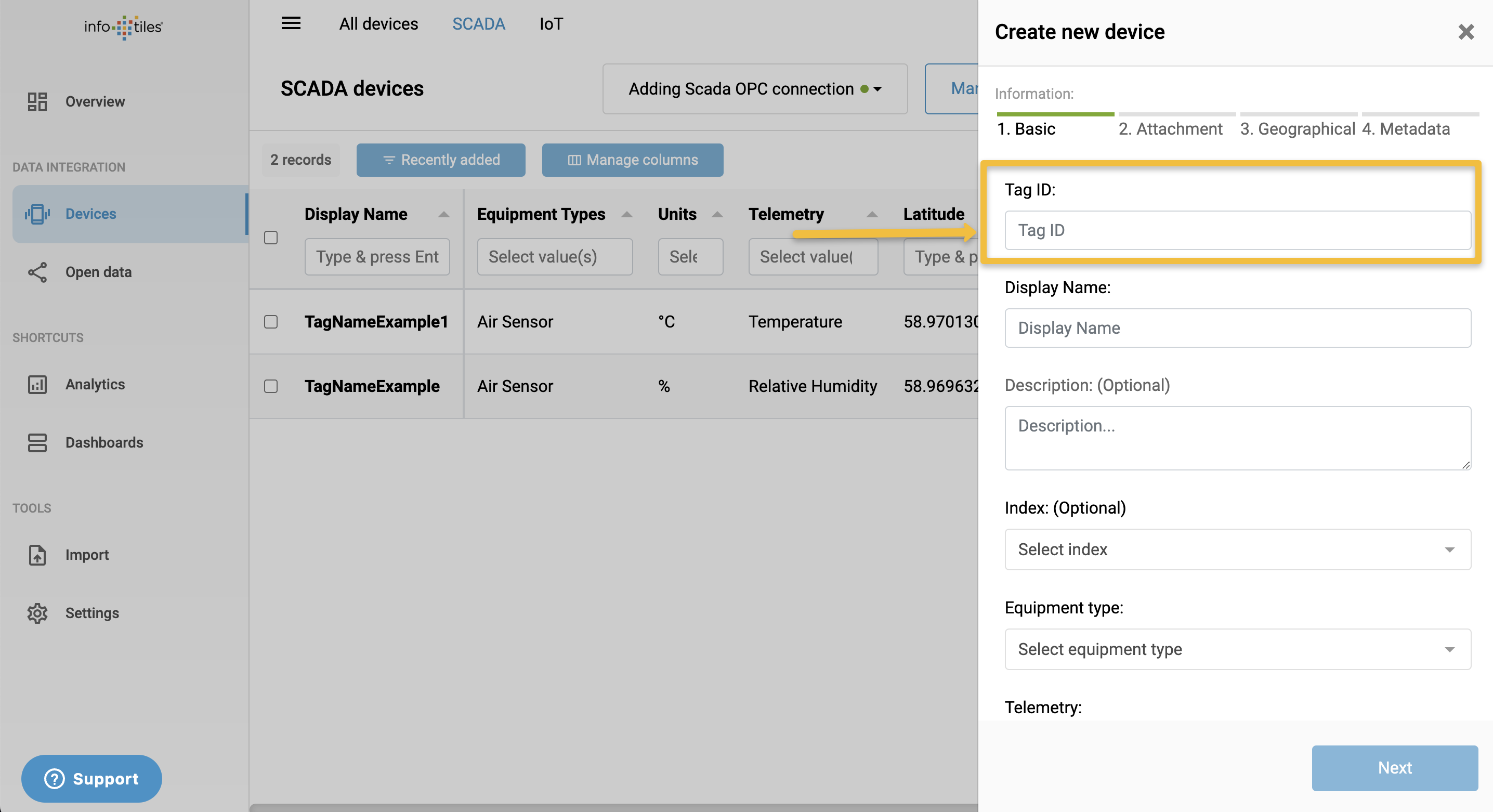

Select the Tag ID field, and fill in the exact ID of the SCADA tag.
Note: this field cannot be changed after the tag is created. Please ensure that tag ID exactly matches the tag ID in the legacy system.
5. Fill in "Display Name"

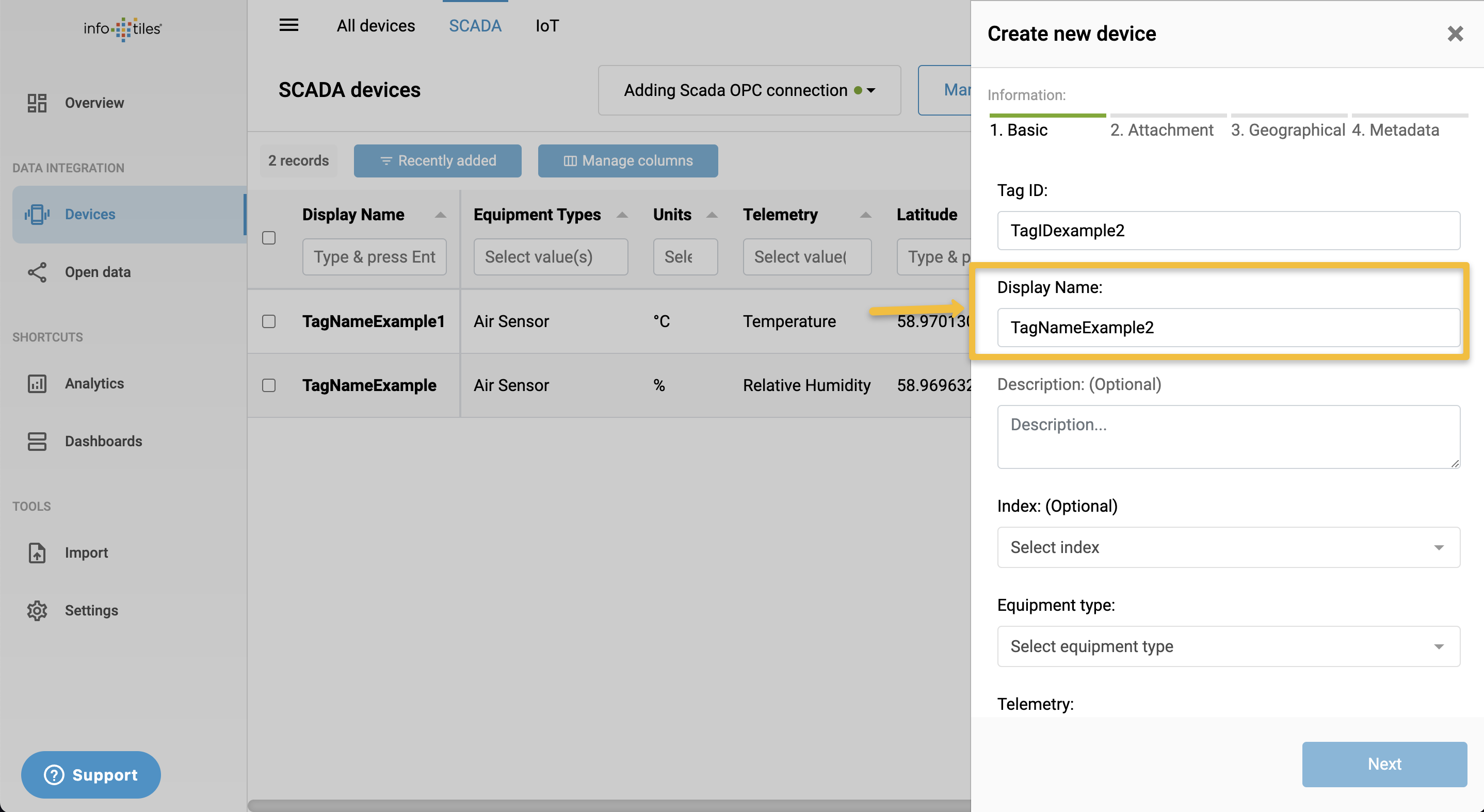

Select the Display Name field, and fill in a friendly name of the tag.
6. Fill in the required information of the SCADA tag
In this example,

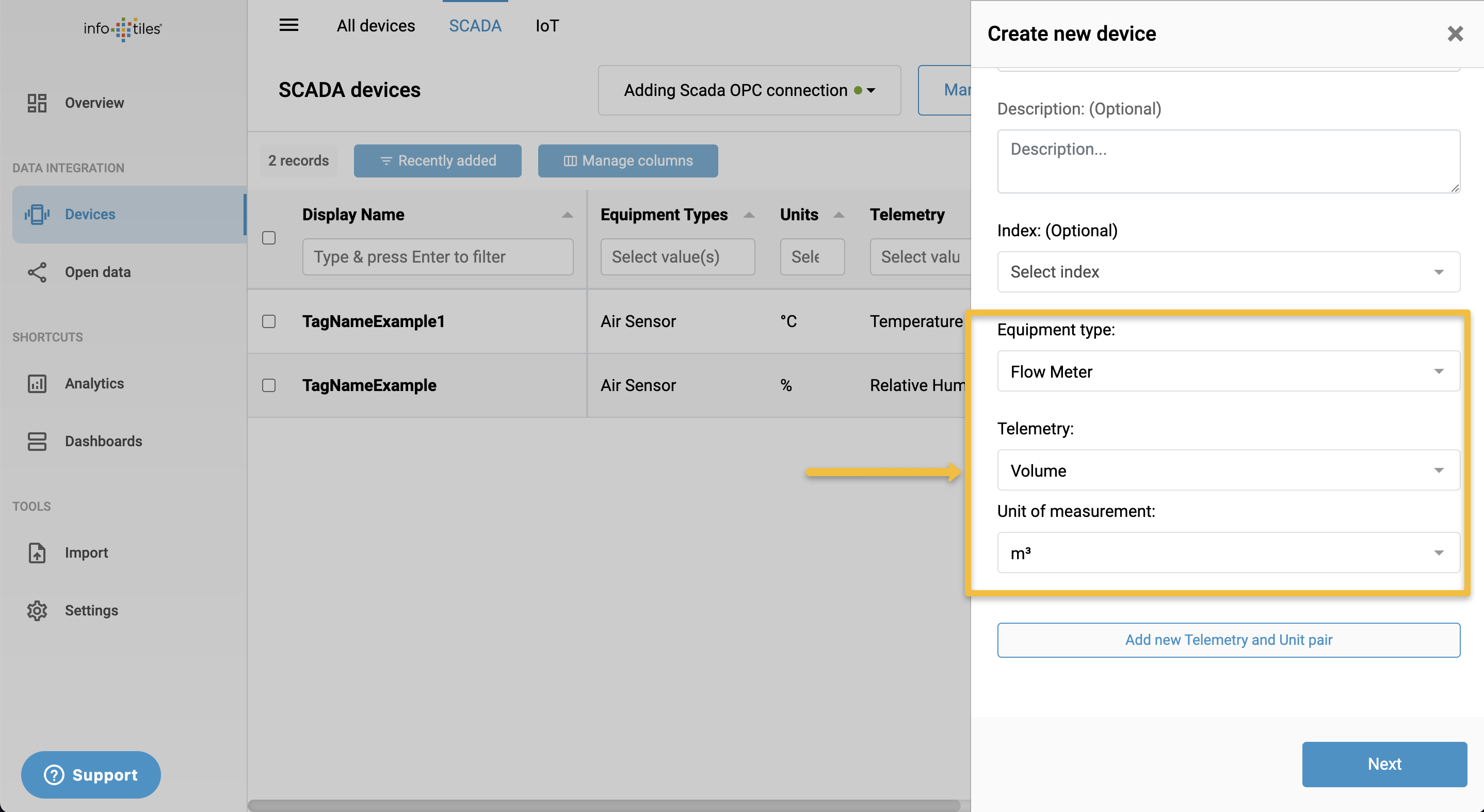

- Choose Flow meter as the equipment type.
- Choose Volume as the Telemetry
- Choose m³ as the Unit
Click "Next" to the next section "Attachment".
7. Upload an attachment (optional)

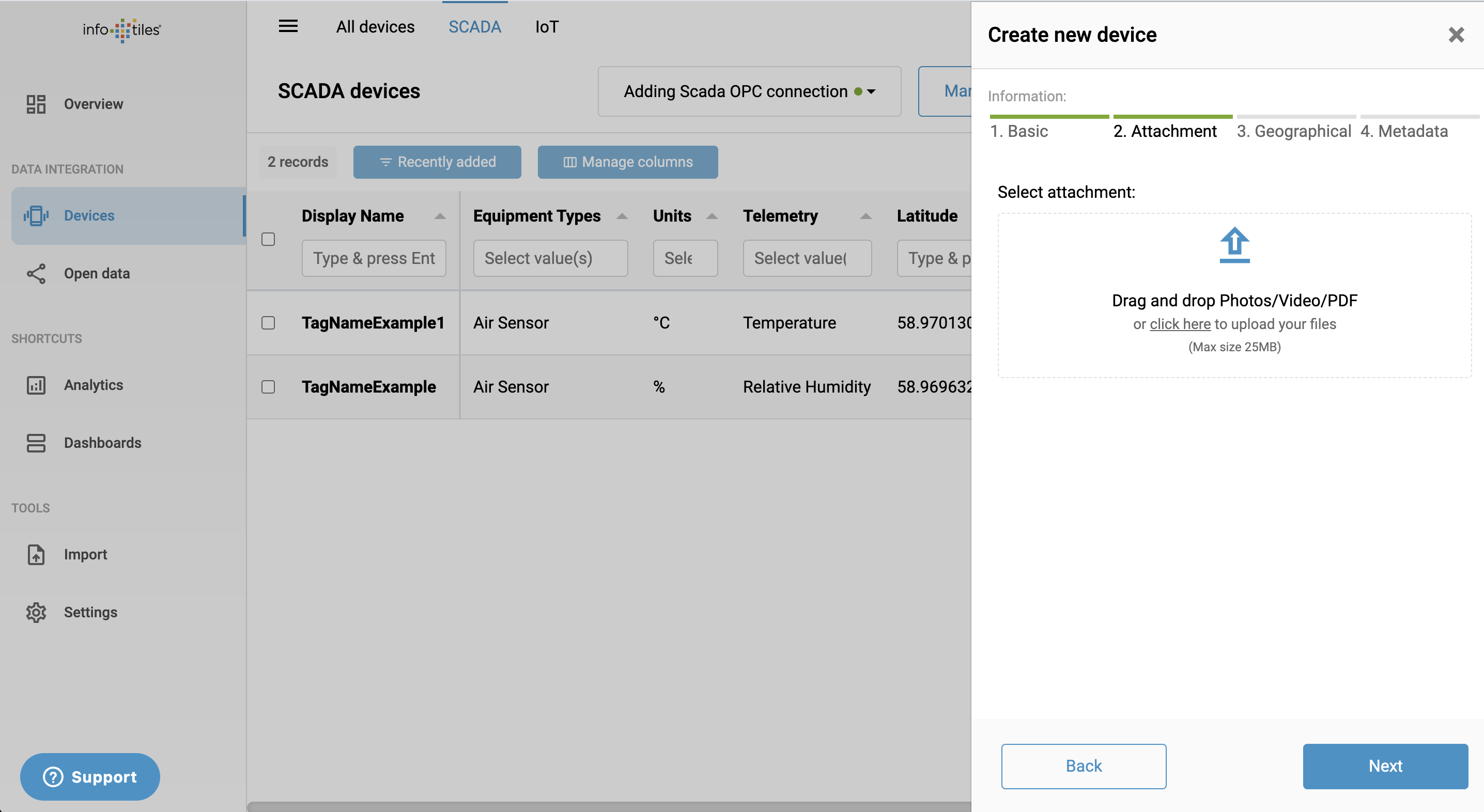

In the "Attachment" section, you can upload a file to provide additional information about the sensor, such as a PDF manual or an image showing the sensor's installation location.
Move on to the following step "Geographical".
8. Select a location

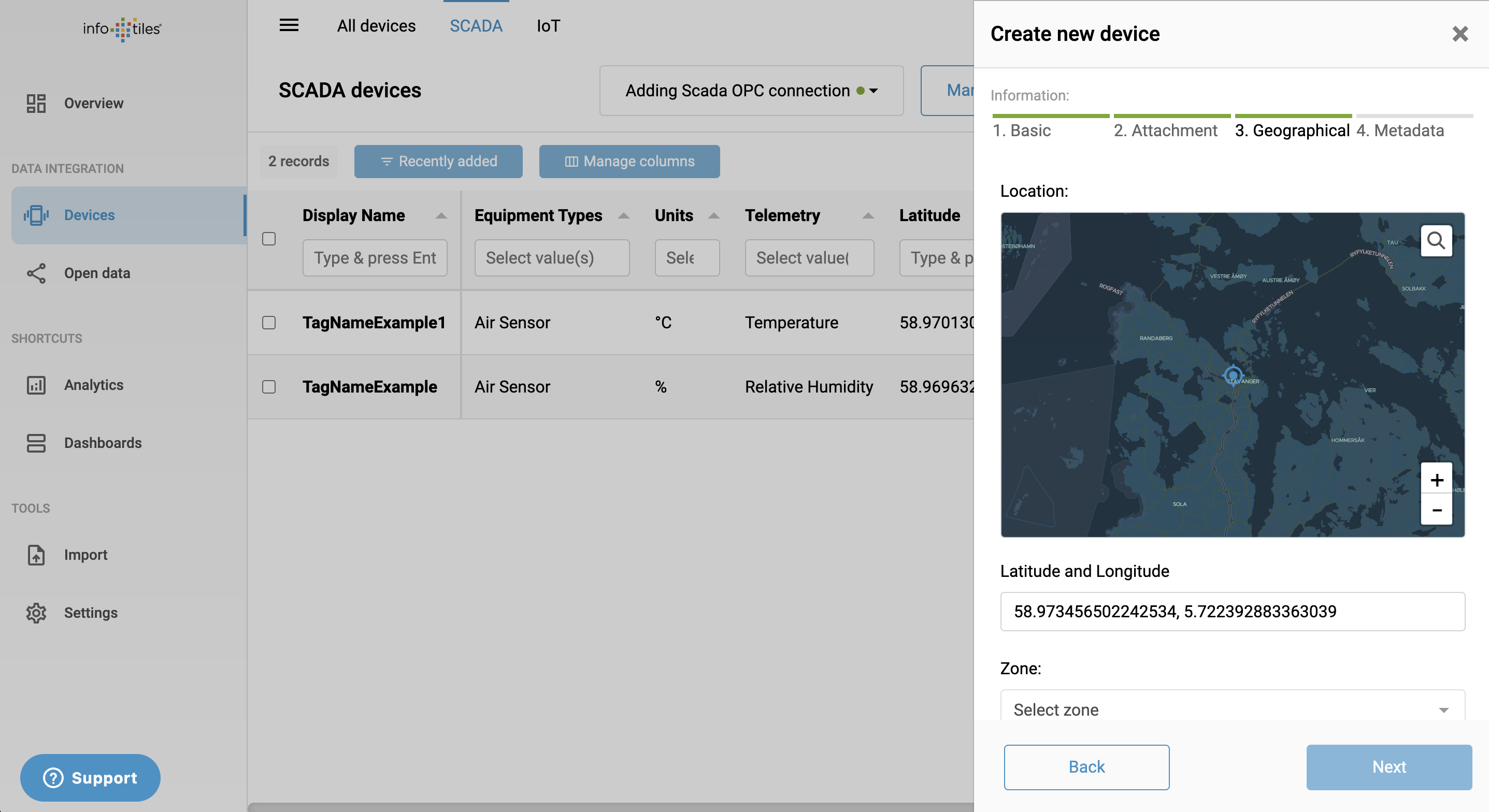

- Drag and drop location marker to map Tag ID (or Device ID) to geographical position (lat/long/address), or manually input latitude and longitude.
- Select a designated zone from the dropdown.
Click "Next" to the final section "Metadata".

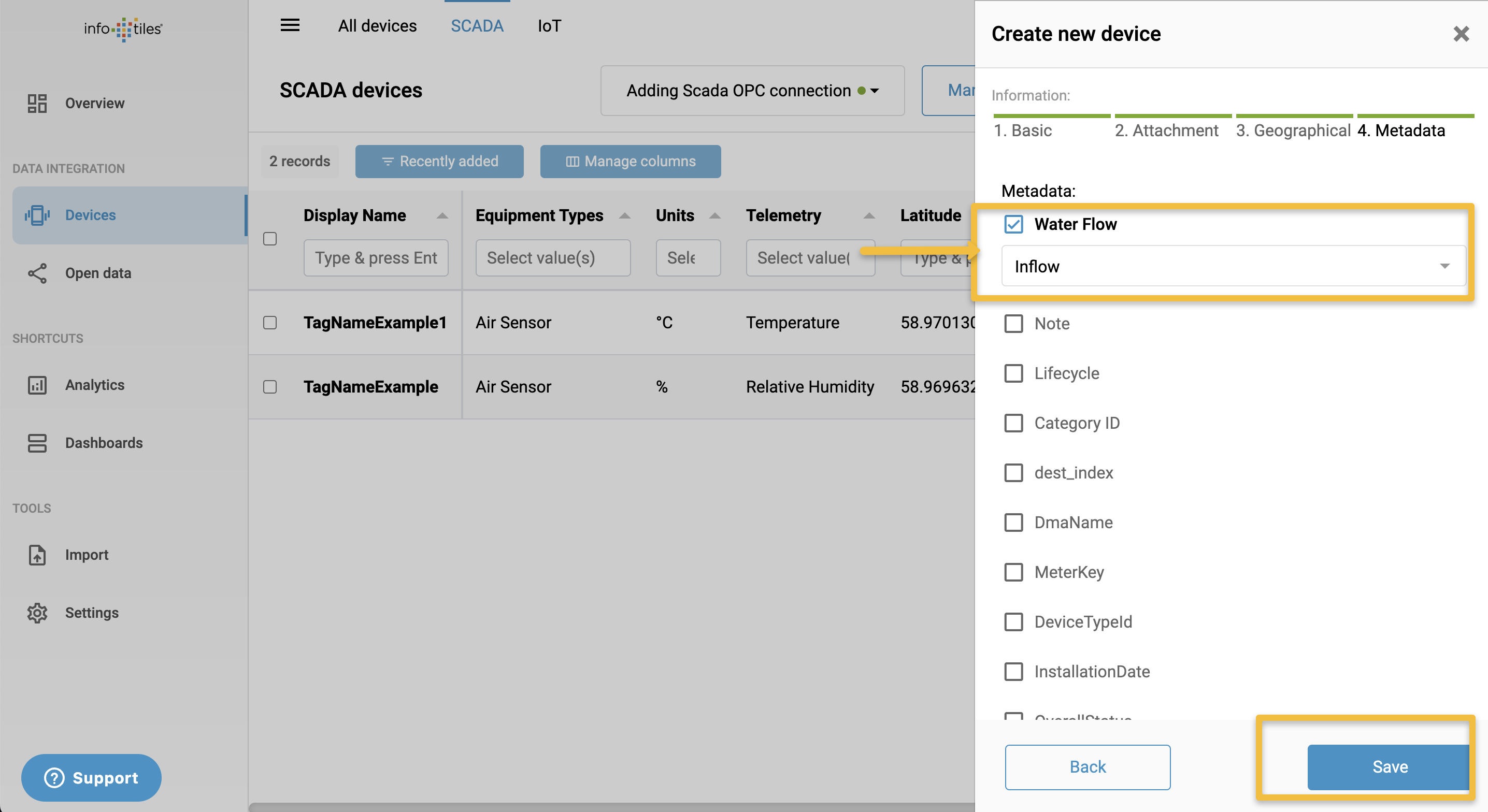

9. Select a metadata
Metadata is helpful when you want to enrich data from the SCADA tag.
- Tick the checkbox to enable the metadata you want to add. For example, click Water Flow to tick the checkbox.
- Choose Inflow as the option for the metadata Water Flow
Click "Save".
10. The new device is added to the list

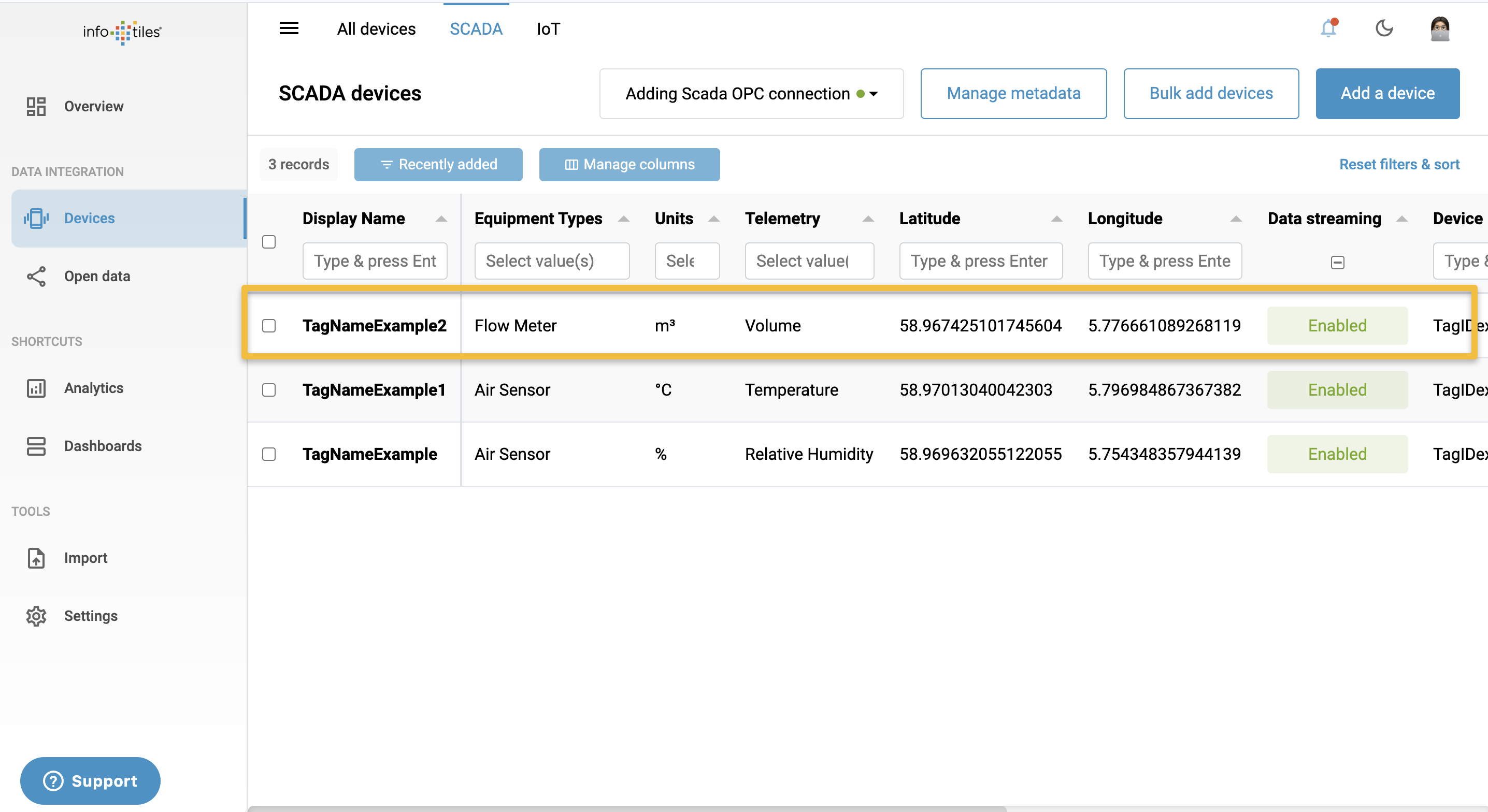

You can now see the new tag in the list.
Click on the Tag Name to make edits on the tag.
The guide covered the detailed steps to add a SCADA, including accessing the SCADA section, selecting equipment types, and saving the changes effectively.
